URLSession to Electrons: How Networking works on iOS

A theoretical deep-dive into how the internet happens via your iPhone

Jacob Bartlett's avatar
Jacob Bartlett
Apr 28, 2026

One of the reasons I reckon I’m a decent writer is that I can remember what it’s like to be very junior. Noob-y mistakes were my bread and butter. I hailed from the “no question is a stupid question” school of thought, and had zero filter when I felt blocked.

These traits combined to make me very annoying to Josh and Si, our resident seniors. My relentless requests for help were invariably met with some variant of:

  • “You forgot to assign the UITableViewDataSource, didn’t you?”

  • “You didn’t set translatesAutoresizingMaskIntoConstraints = false”

  • “You have to call .resume() on that URLSessionDataTask”

This wistful nostalgia trip got me thinking.

What actually happens when you call .resume() on a URLSessionDataTask?

The subsequent rabbit hole is quite fascinating, and required reading if you never stopped to wonder how literally the entire internet works.

So today is a theory lesson + case study.

We’re covering the conceptual model underpinning the vast network of networks that make up the internet.

Along the way, we’re going to follow the unassuming URLSessionDataTask as it traverses each layer of abstraction: from your app’s API request, to system frameworks, into the kernel, via drivers into the radio hardware, and finally out into the physical world as electromagnetic radiation.

Sponsored Link

Lessons Learned from Security Incidents in Mobile Apps

Join Security Researcher and Pentester, Jan Seredynski, on a live stream on May 12 as he dissects recent real-world security incidents in banking, food delivery, and e-commerce. From face verification bypass to location spoofing, he'll break down the anatomy of a breach and what teams can do differently to address them.

Sign up here.


Contents

  • What is the Internet?

  • URLSession and the Application Layer

    • URLSession

    • Resuming the DataTask

    • HTTP, DNS, and Cookies

  • Network.framework & the Transport layer

    • Transport Layer Protocols

    • Segments and Reliability

    • Network.framework

    • The Kernel TCP Stack

  • IP and the Network layer

    • Network Layer Datagrams

    • Forwarding Datagrams

    • Buffering Datagrams

    • Network Layer in the iOS kernel

  • The link layer (feat. Wi‑Fi) ()

    • URLSession at this layer ()

  • Electrons and the Physical layer

    • iPhone hardware

  • Last Orders


What is the Internet?

The internet is a global system of interconnected computer networks, with 2 major types of entity:

  • End systems (a.k.a. “hosts”). This might be an iPhone, a server in a data centre, or perhaps a very clever fridge.

  • The network core. This is a mesh of routers, packet switches, and IXPs (internet exchange points) that play pass-the-parcel with packets of data.

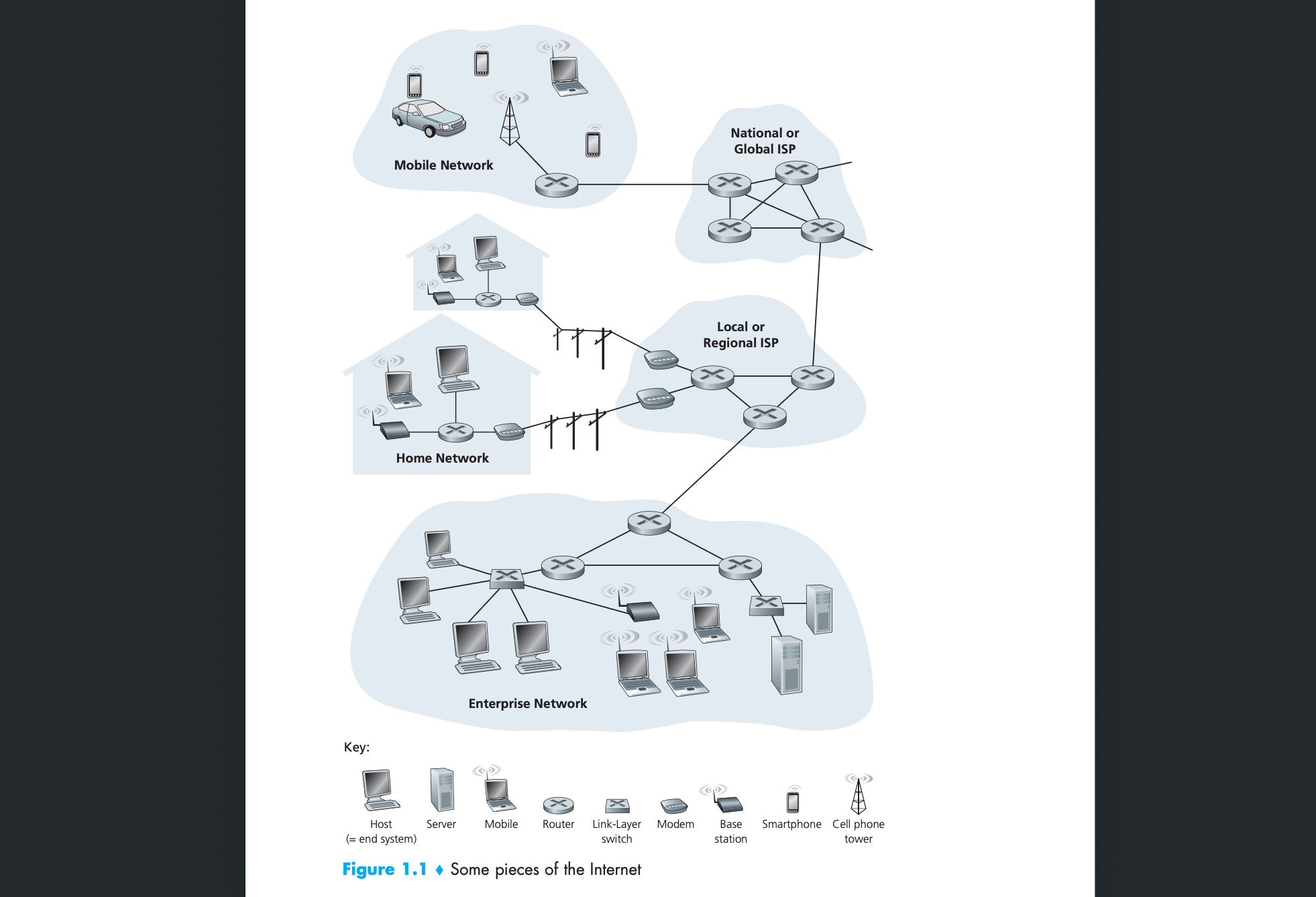

“Some pieces of the internet” — from Computer Networking: a top-down approach

This network core includes the global backbone of the internet: an interconnected web of physical infrastructure like copper wire, fibre optic cable, and undersea cables carrying data between networks.

This lowest level of infra is operated by friendly, totally non-evil companies such as Verizon, AT&T, and Google. The interconnectivity is key: the internet as we know it works because these companies all agree to route each other’s traffic.

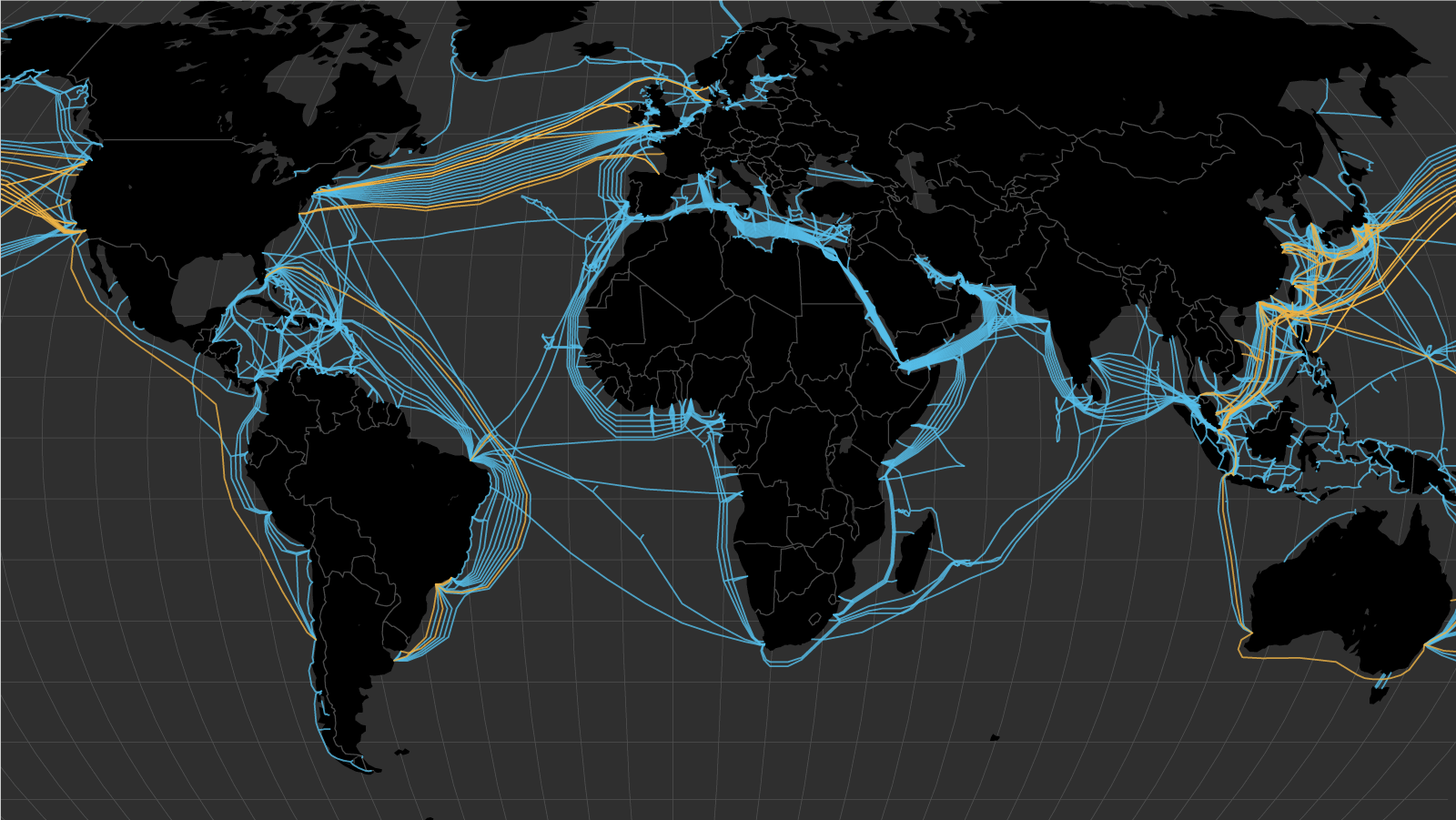

Map of undersea internet cables, from The New York Times

The networks are compatible because they all speak to each other via IP, the internet protocol. This is the most fundamental thing to understand. A protocol is simply a specified format for sending and receiving messages. These formats are agreed via an “RFC” process run by a shadow cabal, the Internet Engineering Task Force.

Proposed new tag: IMG

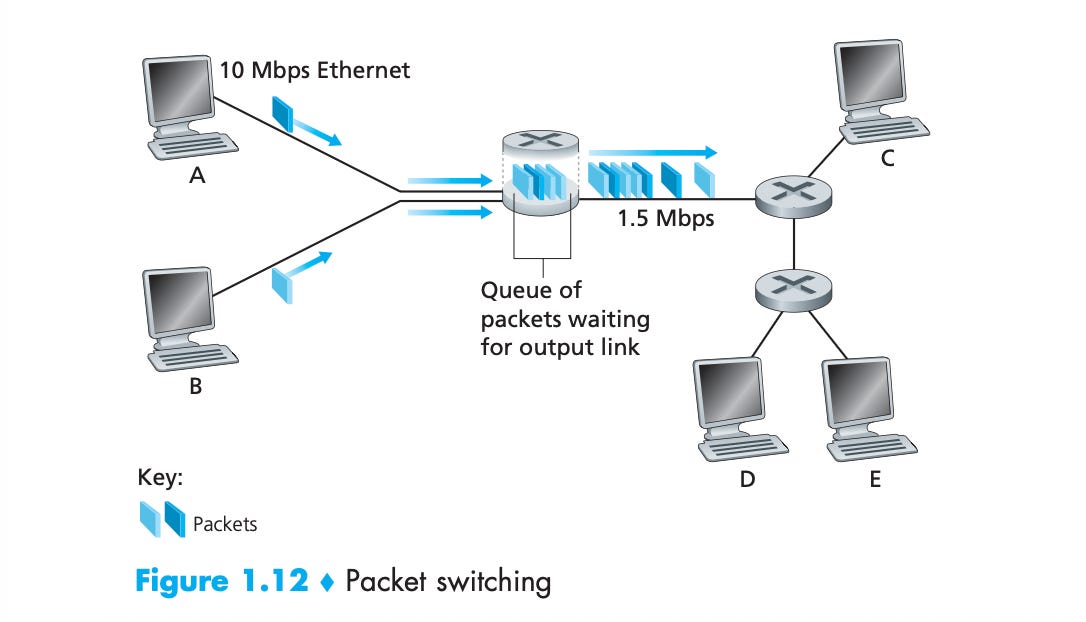

Routers forward packets between each other as data traverses this physical system of cables, fibre, and radio links to their destination; from your iPhone in the UK, through to a VPN server in Sweden, down to an edge cache in Germany to retrieve your favourite scheiße video (and back).

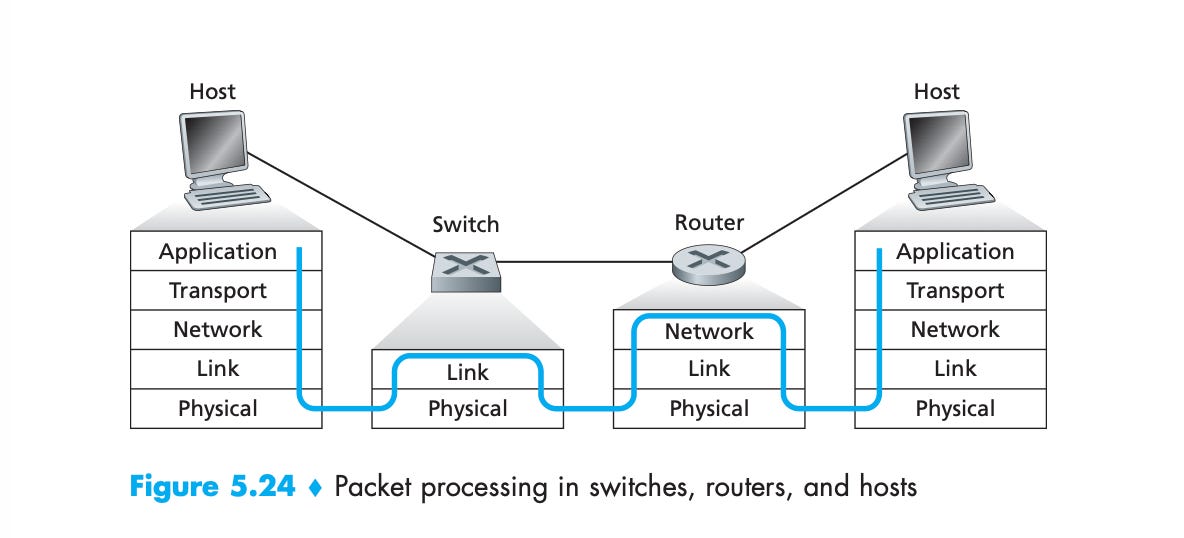

To understand how we go from URLRequest to a streamed .mp4, we follow the classic five-layer Internet model:

  • application

  • transport

  • network

  • link

  • physical

The layered model is all about abstractions.

The application layer worries not about the underlying orchestration of packet encapsulation and transport links. It might as well be magic. Who cares? Data go into pipe, data come out of pipe.

This “who cares” powers the entire global software ecosystem, preventing lowly web developers going insane when confronted with manmade horrors beyond comprehension (like ethernet ports).

Abstraction saves you from understanding implementation details of each layer. You just need to know the protocol, that is, the format of data in and out. Abstraction is everywhere. It’s why you’re able to ship profitable SwiftUI apps without understanding the low-level process memory management done via a red-black tree inside the XNU kernel. Whoooooo. Cares.

Let’s investigate each layer, step-by-step, looking at real code to understand as we go.


URLSession and the Application Layer

The application layer is where all the interesting stuff around the network can be done. It contains HTTP, DNS, cookies, caches, configuration, and everything else you actually touch in your day-to-day.

URLSession

URLSession is your entry-point into this world. To handle a run-of-the-mill network request, you’ll create a session, configure it, set up a task, and kick it off with resume().

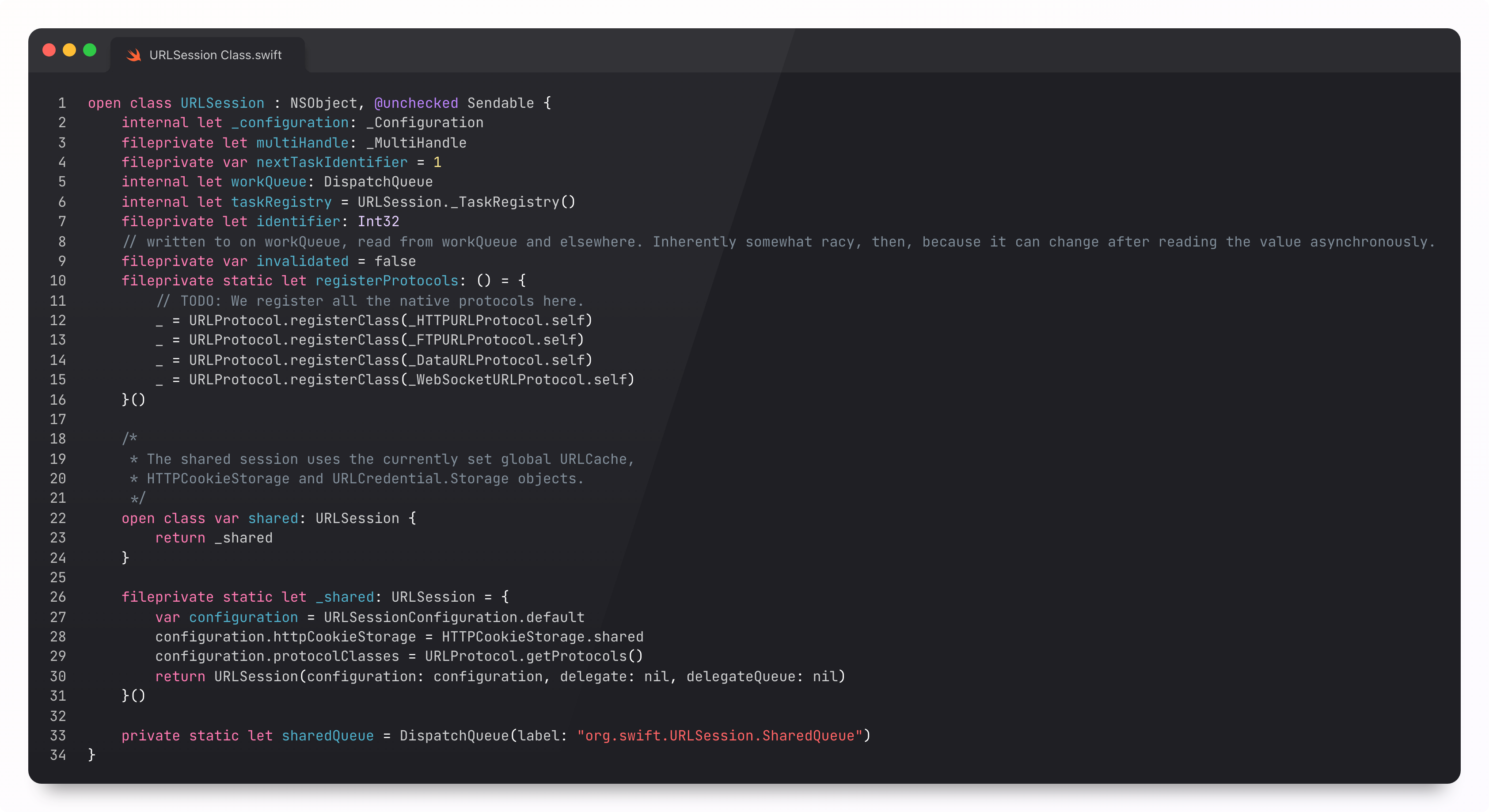

URLSession.swift

p.s. I am using the handy open-source FoundationNetworking library here, which relies on curl rather than CFNetwork.

Internally, URLSession uses both Grand Central Dispatch and NSOperation to avoid data races, using GCD queues to protect its internal state, and operations to handle URLSessionDelegate callbacks.

Resuming the DataTask

Individual requests are created and executed using a URLSessionDataTask. This calls into the underlying implementation library (curl or CFNetwork) and feeds data back to the session. The task tracks its state, counts bytes, and finishes with either a URLResponse or an Error.

This data task gives devs the opportunity to configure the request before work begins. It inits in a suspended state, kicking off when resume() is called.

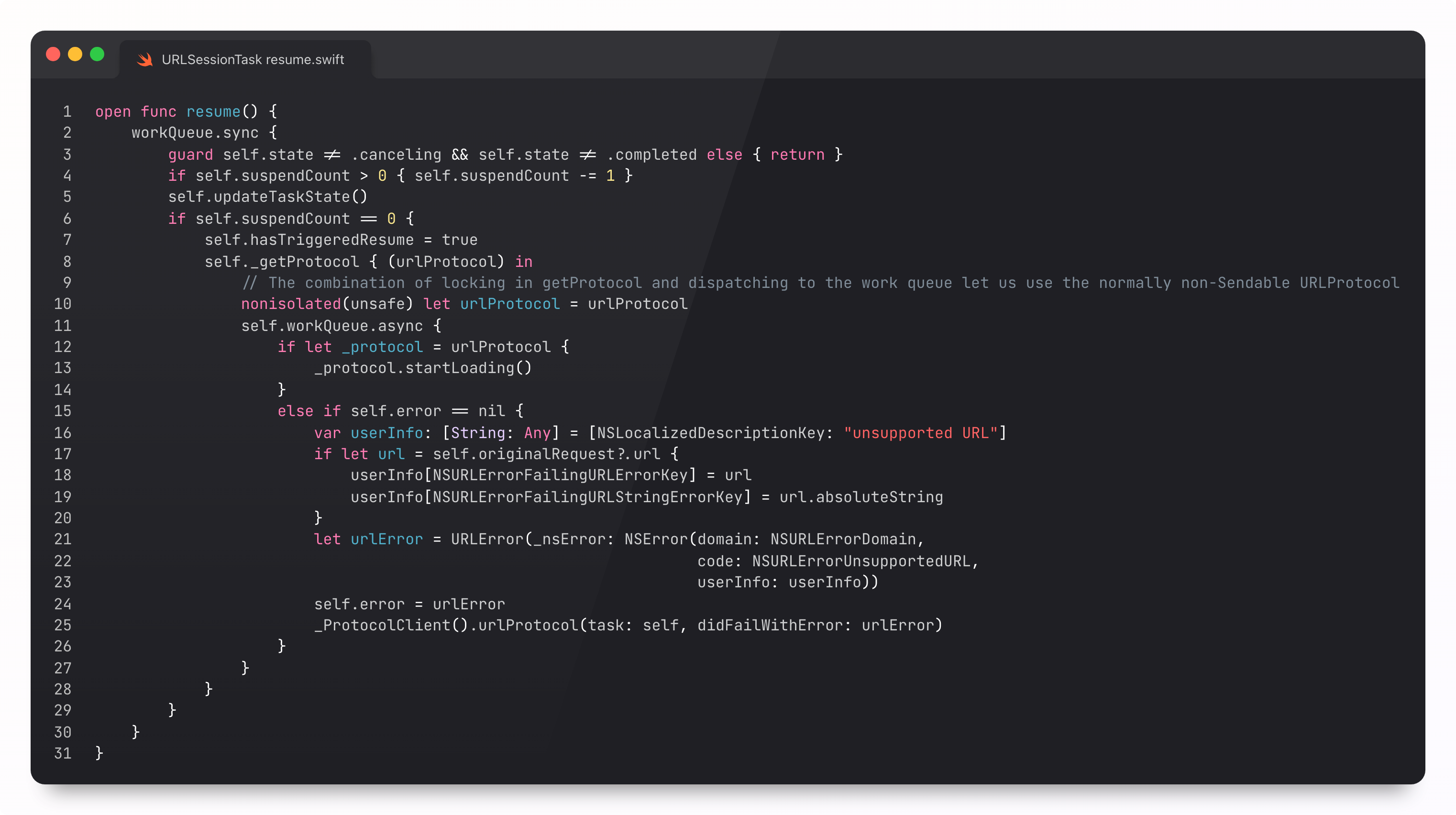

URLSessionTask.swift

The async/await form conveniently handles both task creation and resume() internally. It’s truly nothing special, wrapping the O.G. dataTask(with: URLRequest) function in withCheckedThrowingContinuation.

HTTP, DNS, and Cookies

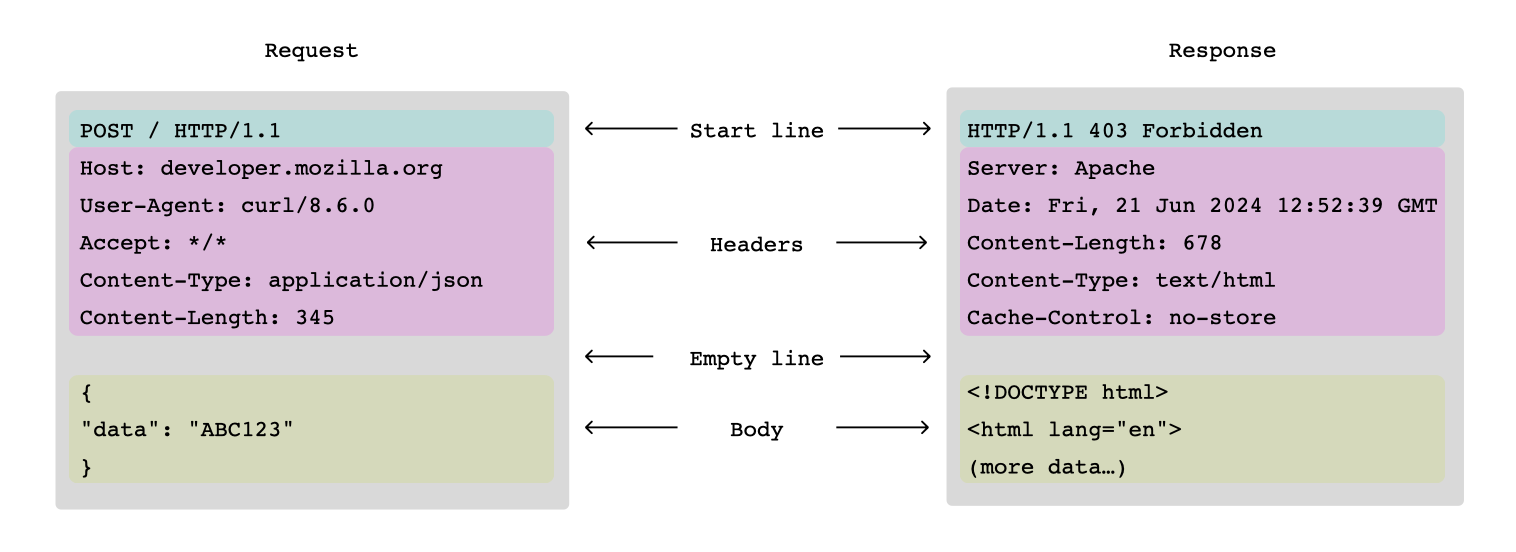

In the application layer, network requests often have a human-readable format, such as the ubiquitous HTTP request.

From Mozilla

You can trivially instrument the application layer yourself: via Charles Proxy, Proxyman, or on the web, by right-clicking and tapping “inspect element”, then looking at the “Network” tab of the site debugger.

DNS is a distributed dictionary that maps URL hostnames to IP addresses. Caches on your URLSessionConfiguration help decide whether your request even needs to hit the network. Cookies attach metadata to stateless requests to help our server maintain a consistent user state. If you want a stateless request, you can use an ephemeral session configuration.

The curl and CFNetwork libraries handle lower-level details in the application layer such as multiplexing, which combines multiple HTTP streams onto the same TCP connection (see below), saving energy by reducing connection overhead.

Ultimately, these lower-level libraries run syscalls into the kernel such as connect, socket, send, and recv. This brings us down to the next layer.


Network.framework & the Transport layer

The transport layer moves messages between end systems.

Transport Layer Protocols

I’ll jump ahead very briefly, because there’s one really important thing to understand about IP (in the layer below), that explains everything about transport layer protocols:

IP is unreliable.

When a packet is sent with IP, there is no guarantee that it arrives to its destination, on time, or at all.

Now we know that, we can appreciate the 3 important protocols of the transport layer:

  • TCP, Transmission Control Protocol, is a system that creates a (pretty) reliable connection on top of IP by verifying that each message was sent. Most of the internet is built atop TCP/IP.

  • UDP, user datagram protocol, is fire-and-forget. It’s simple and fast, and “good enough” for streaming live video calls and gaming.

  • QUIC, quick UDP internet connections (QUDPIC just sounded silly), is a modern protocol that powers fast and reliable connections on top of UDP. Ask your backend engineers if they support HTTP/3 today!

I’m going to resist the temptation to write another 12,000 word behemoth, and focus on explaining why TCP is interesting, and relate it to iOS.

Segments and Reliability

When sending an HTTP request via TCP, the request is split into segments, which add bookkeeping logic around the original request data.

---------------------------- 32 bits ----------------------------
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|          Source Port          |       Destination Port        |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                        Sequence Number                        |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Acknowledgment Number                      |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Data |           |U|A|P|R|S|F|                                |
| Offs | Reserved  |R|C|S|S|Y|I|           Window Size          |
| et   |           |G|K|H|T|N|N|                                |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|           Checksum            |        Urgent Pointer         |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Options (if Data Offset > 5)               |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                           Application Data                    |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

This bookkeeping includes sequence numbers, acknowledgements (ack), and checksums. When a segment is sent successfully, success is ack’d. TCP checks acks and “the lack of acks” to infer lost data segments for retransmission.

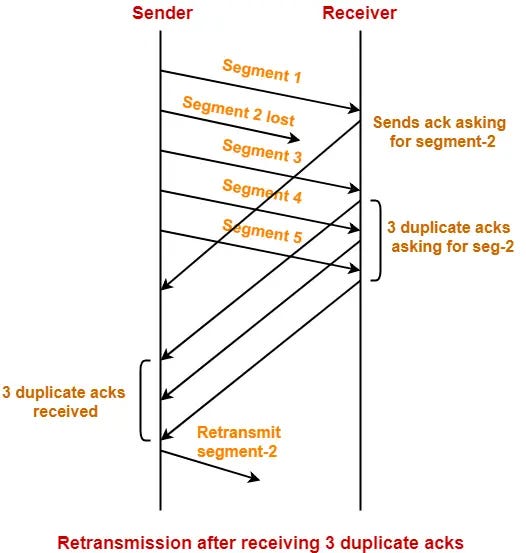

TCP Retransmission, by Akshay Singhal

This is reconstructed into the original HTTP request on the receiving end system, and returns back an ultimate success response for our intrepid URLSessionDataTask.

Reliable doesn’t mean guaranteed. If Dick Dastardly snips your router’s ethernet cable, or blows up your local IXP with an implausibly large crate of TNT, the message won’t magically get delivered.

This is explained best in Joel Spolsky’s classic the law of leaky abstractions.

In a beautiful symphony of collaboration that makes you wish for the good ol’ days, TCP throttles the request if it detects an abnormally slow receiver. This forms the basis for congestion control and traffic management for the entire Internet. Kum baya, my friend.

Network.framework

Foundation is abstracted well away from the transport layer, but we can absolutely play around with it using the lower-level Network framework.

This gives devs access to transport-layer primitives like TCP, UDP, and QUIC, allowing you to configure properties like message format, retries, timeouts, authentication, encryption, and state machines.

This is used by apps like Telegram to implement custom application-layer protocols that offer end-to-end encryption, and transmit data over standard transport layer primitives.
